23 / 24
23
Bus
LAN
30VDC
-
+
3
24V DC
1
2
3
4
TGA200
1A
24VDC
on
off
1
3
L
N
230V AC
24V DC
5
7
+
-
9
11
+
-
24V DC
L
N
+
-
230V AC 50/60Hz
LED status
Meaning
Fault clearance
Not lit
No network connection
Connect network cable
Red, continuous IP address conflict
Check the IP addresses use
on the network
Green, flashing Waiting for IP address from
DHCP server
-
Green, continuous IP address found
-
Not lit
No network connection
Connect network cable
@
Red, continuous Portal not accessible or
Check Internet connection
access denied
Green, flashing Connecting to portal
-
Green, continuous Portal connection established -
Red, flashing Power supply problem
Check the power supply
OK Red, continuous Defective device
Notify Hager technical support
Green, flashing domovea server starting
-
Green, continuous domovea server ready for use -
System requirements:
- Microsoft
®
Windows
®
XP/Vista/Windows 7/Windows Media Center
- Pentium processor with at least 600 MHz or equivalent
- At least 128 MB RAM, recommended 256 MB or greater
- VGA graphics card with at least 16 Bit colour depth (High Color) and
a resolution of 1024 x 768 pixels
- Minimum available hard drive memory of 500 MB
- CD/DVD drive or network adapter
Capacity of functions:
- 100 groups (sections of buildings, rooms, areas, etc.)
- 500 devices (e.g. for lighting, blinds and sensors, etc.)
- 10 IP cameras (selected from a specified manufacturers' list)
- 50 sequences
- 30 Clients (Profile)
- Image memory for groups and devices, max. 20 MB
Order No.
TJA450
KNX Connection
KNX-Bus 30 V DC
Auxiliary voltage
24 V DC (TBTS, SELV, ZLVS )
Power from the bus
10 mA max., 30 V DC
Power from the auxiliary voltage
150 mA max., 24 VDC
supply
Ethernet network
100 BaseT (100 Mbit/s)
Bus connections
0.6 - 0.8 mm
2
Power supply connection
0.75 - 2.5 mm
2
Ethernet/IP network connection
RJ 45
Operating temperature
0° C —> +45° C
Storage temperature
-20° C —> +70° C
Protection rating
IP20
Dimensions (1 PLE = 17,5 mm)
6 PLE

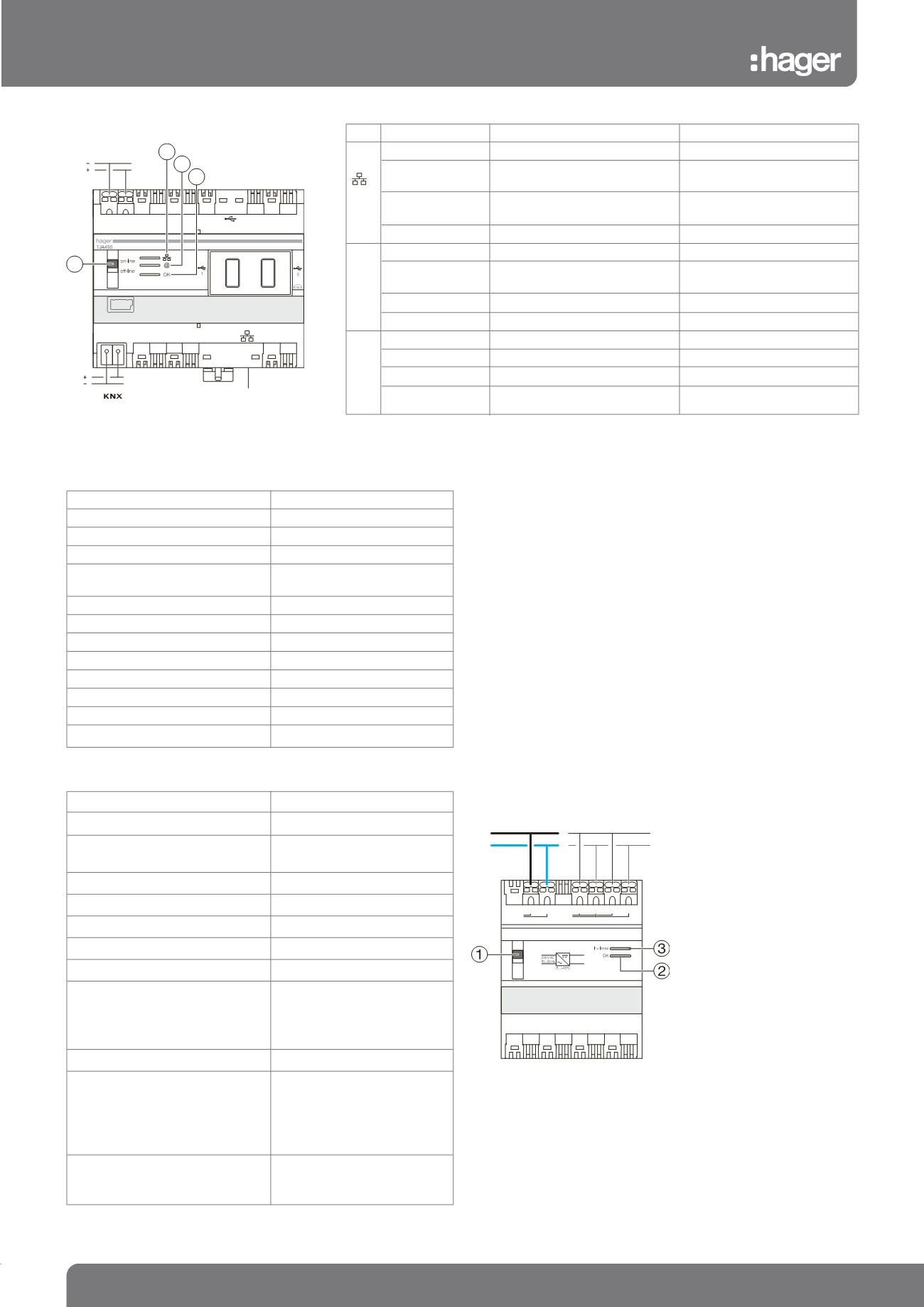

TJA450 connection diagram
TJA450 technical data
TGA200 technical data
Order No.
TGA200
Dimensions (1 PLE = 17.5 mm)
4 PLE
Supply voltage
230 V AC
50/60 Hz
Dissipation max.
3.6 W
KNX system voltage
24 V DC, 1A
Number of outputs
4 PLE
Measurement current
Mains failure buffering
Connection
Mains power supply
Connectors
flexible
0.75 - 2.5 mm
2
solid
0.75 - 2.5 mm
2
Bus
Display/operation
Operating indicator
LED (Green)
Overvoltage indicator
LED (Red)
Reset indicator
LED (Red)
Reset button
Ambient temperature
Storage
-20°C to +70°C
Operation
0°C to +45°C
TGA200 Power supply
tebis KNX TP
system equipment
