579 / 759
Technical Hotline
+44 (0)1268 563720
CIRCUIT PROTECTION
579
TECHNICAL SPECIFICATION
ELECTRICAL (WEATHERPROOF ENCLOSURES ONLY)
MAXIMUM CURRENT RATING
5702s 2 pole devices up to 100A
5704s 4 pole devices up to 63A
Note:
5702s – Can accept up to 4 module ways with
removal of moulded blanks.
5704s – Can accept up to 8 module ways with
removal of moulded blanks.
TERMINAL CAPACITY
5702s: 4 x 6mm
2
earth and neutral
5704s: 2 x 6mm
2
and 6 x 4mm
2
earth and neutral.
RATED OPERATIONAL VOLTAGE
220-415V
RATED INSULATION VOLTAGE
660V
TECHNICAL SPECIFICATION
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C (not to exceed an average of more
than +35°C in any 24 hour period)
IP ratings: (see also ‘Service Conditions’, below)
CONSUMER UNIT
IP2XC
2 module enclosure 5502s
IP3X
2 module enclosure 5702s
IP65
2 module enclosure K5592s
IP30
4 module enclosure 5504s
IP3X
4 module enclosure 5604s
IP3X
4 module enclosure 5704s
IP65
Max. installation altitude
2000m

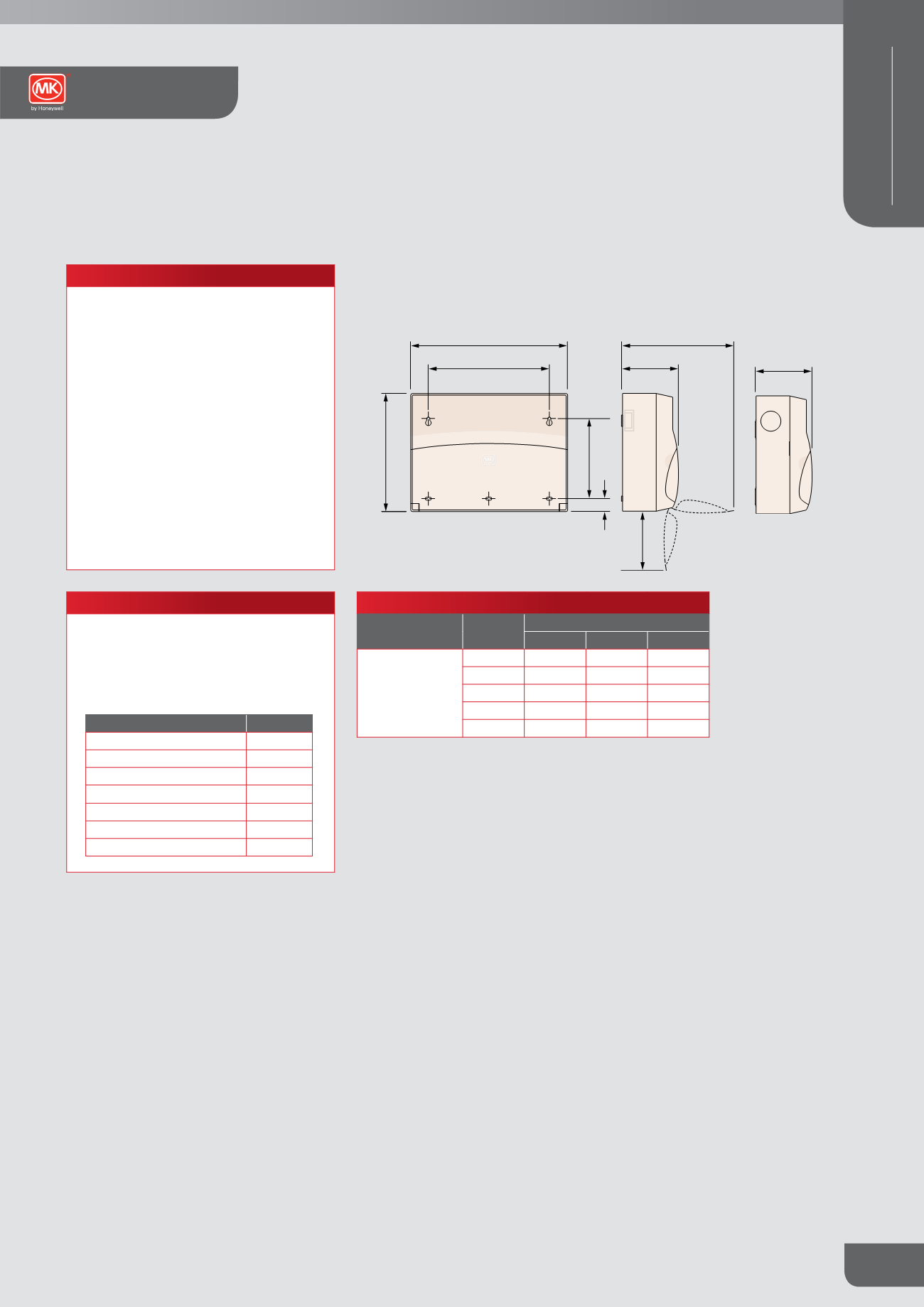

SURFACE INSULATED K5604S / K5686S
UNIT
MODULES
DIMENSIONS
A
B
C
SURFACE
INSULATED
4
140
70
156
8
234
164
156
12
306
236
156
16
378
308
156
21
468
398
156
Sentry Technical
B
A
111
219.5
230
C
25*
115.5
*For K5504s –23mm
110
Consumer unit
Note: Knockout details on following page
Dimensions (mm)
Surface insulated
K5604s to K5686s
