Custom Designed DeskPods
The design service enables customised floorboxes to be configured and delivered to meet individual requirements.
Step 1 Choose the shroud for the DeskPod unit
Step 2 Choose the in feed option
Step 3 Does the unit require any connection to a tap-off?
Step 4 Does the unit require any protection?
Step 5 Choose the number and type of sockets required
Step 6 Choose the number and type of data modules
Step 7 Choose the end feed options

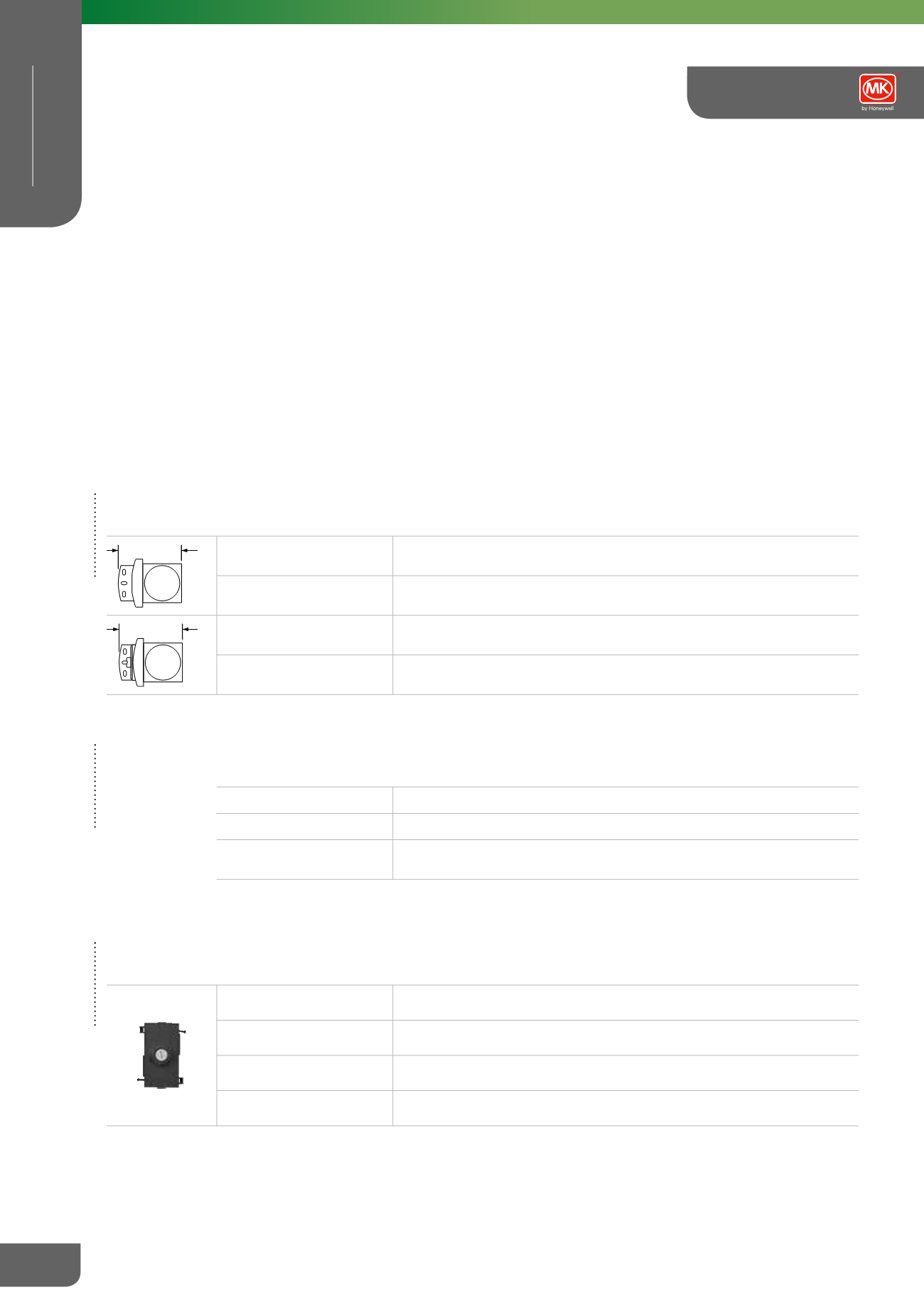

Supply Options
Option Ref. Description
65mm
90mm
90mm NONE End cap includes 20mm diameter hole for conduit or cable gland
PRE-WIRED TO TAP-OFF Module can be supplied pre-wired to supply cord or powertrack tap-off
65mm
90 m
90mm
3 POLE CONNECTOR Wieland GST* or Wago Winsta** standard power
4 POLE CONNECTOR
Wieland GST* or Wago Winsta** clean earth system
Dual earth conductors for compliance to High Integrity Earthing=, BS 7671:2008
IET Wiring Regulations
All end caps include fixing bracket. * Wieland GST connectors include retaining clip to minimise risk of accidental disconnection. ** Wago Winsta, Neuturik and other components available on request.
Wiring Options
Option Ref. Description
STANDARD Single protective conductor
CLEAN EARTH Additional clean earth protective conductor
HIGH INTEGRITY EARTHING† Protective conductor meets requirements for High Integrity Earthing=, BS 7671:2008
IET Wiring Regulations
† In the 17th Edition of the IET Wiring Regulations, these requirements are found in Regulation 543.7.
Circuit Protection Options
Option Ref. Description
UNIT FUSE 12.5A High breaking capacity ceramic fuse to BS EN60127-2
Fuse length: 32mm Fuse diameter: 6.35mm
MCB 16A*, Type B, Single Pole, 6kA (MK Sentry)
RCD 16A, 30mA tripping current, Double Pole, 6kA (MK Sentry)
RCBO 10A*, Type C, 30mA tripping current, Double Pole 6kA
* Alternative circuit protection ratings available on request. All circuit protection devices are from the MK Sentry range. RCD’s do not provide overcurrent protection.
