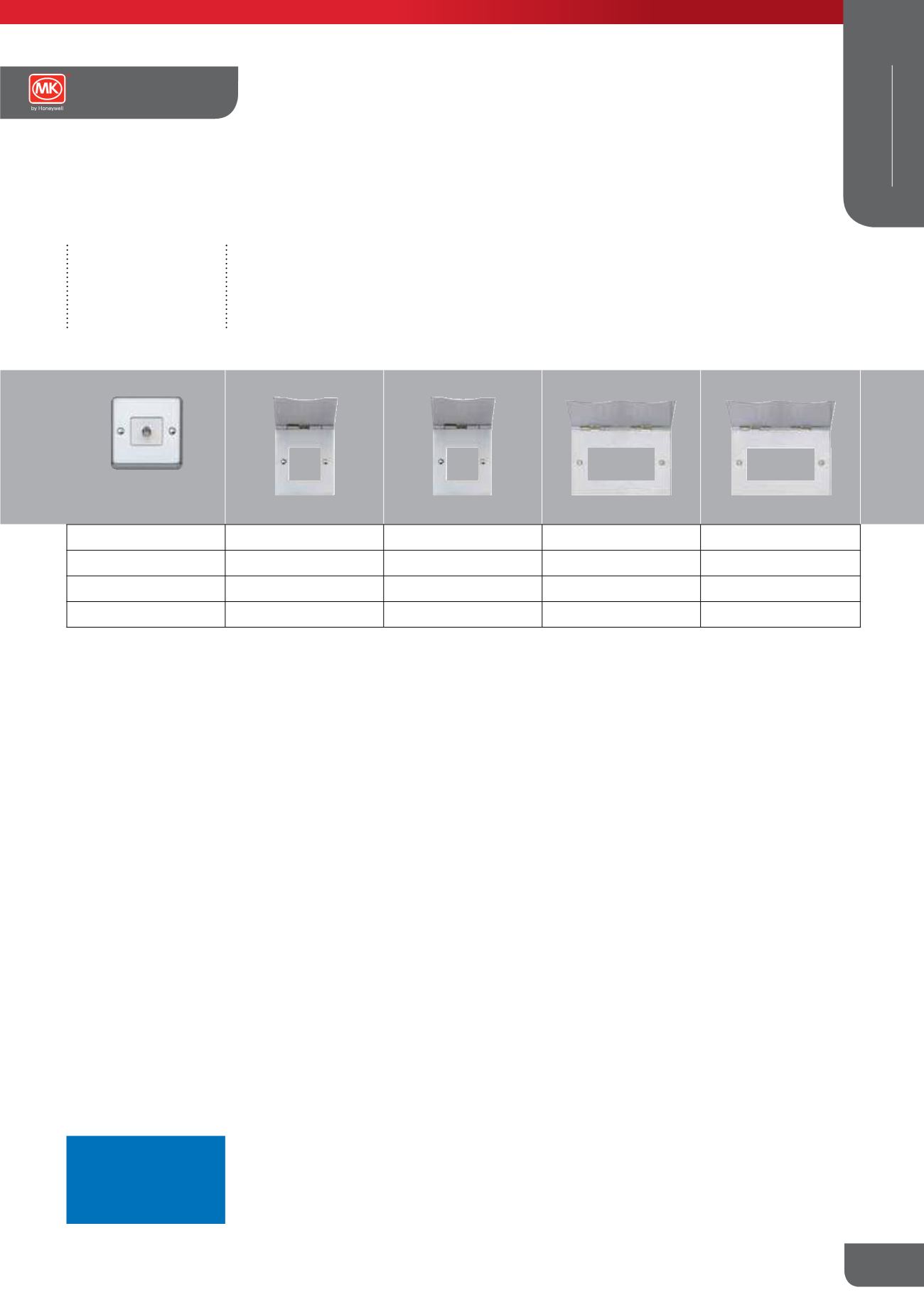

Satellite
Socket Outlets
SINGLE OUTLET
F TYPE SATELLITE
SOCKET
DIMENSIONS
86 x 86mm
FIXING CENTRES
60.3mm
IEC 169-2:1965
BS 5733:2010 where applicable
Fully screened modular
TV/Satellite outlets are
available to fit
Euro frontplates.
See page 48 for details.
1 GANG STANDARD
2 GANG STANDARD
Floor Mounted Euro Frames
MOUNTING BOXES
FLUSH
1 gang: 866ZIC
Boxes must have a minimum depth
of 35mm
DIMENSIONS
1 gang: 102 x 86mm
FIXING CENTRES
1 gang: 60.3mm
NOTE
Use ‘F’ type connectors with
recessed euro frame products.
This ensures full lid closure when
the aerial lead is disconnected.
Power sockets must only be used
with the standard Euro Frame
products as the recessed type may
NOT allow full plug engagement.
BS 5733:2010
For a complete selection of Euro
modules, see pages 46-48.
1 GANG RECESSED
2 GANG RECESSED
MOUNTING BOXES
FLUSH
1 gang: 866ZIC
Boxes must have a minimum depth
of 35mm
DIMENSIONS
1 gang: 102 x 86mm
FIXING CENTRES
1 gang: 60.3mm
NOTE
Use ‘F’ type connectors with
recessed euro frame products.
This ensures full lid closure when
the aerial lead is disconnected.
Power sockets must only be used
with the standard Euro Frame
products as the recessed type may
NOT allow full plug engagement.
BS 5733:2010
For a complete selection of Euro
modules, see pages 46-48.
MOUNTING BOXES
FLUSH
2 gang: 886ZIC
Boxes must have a minimum depth
of 35mm
DIMENSIONS
2 gang: 102 x 146mm
FIXING CENTRES
2 gang: 120.6mm
NOTE
Use ‘F’ type connectors with
recessed euro frame products.
This ensures full lid closure when
the aerial lead is disconnected.
Power sockets must only be used
with the standard Euro Frame
products as the recessed type may
NOT allow full plug engagement.
BS 5733:2010
For a complete selection of Euro
modules, see pages 46-48.
MOUNTING BOXES
FLUSH
2 gang: 886ZIC
Boxes must have a minimum depth
of 35mm
DIMENSIONS
2 gang: 102 x 146mm
FIXING CENTRES
2 gang: 120.6mm
NOTE
Use ‘F’ type connectors with
recessed euro frame products.
This ensures full lid closure when the
aerial lead is disconnected.
Power sockets must only be used
with the standard Euro Frame
products as the recessed type may
NOT allow full plug engagement.
BS 5733:2010
For a complete selection of Euro
modules, see pages 46-48.
