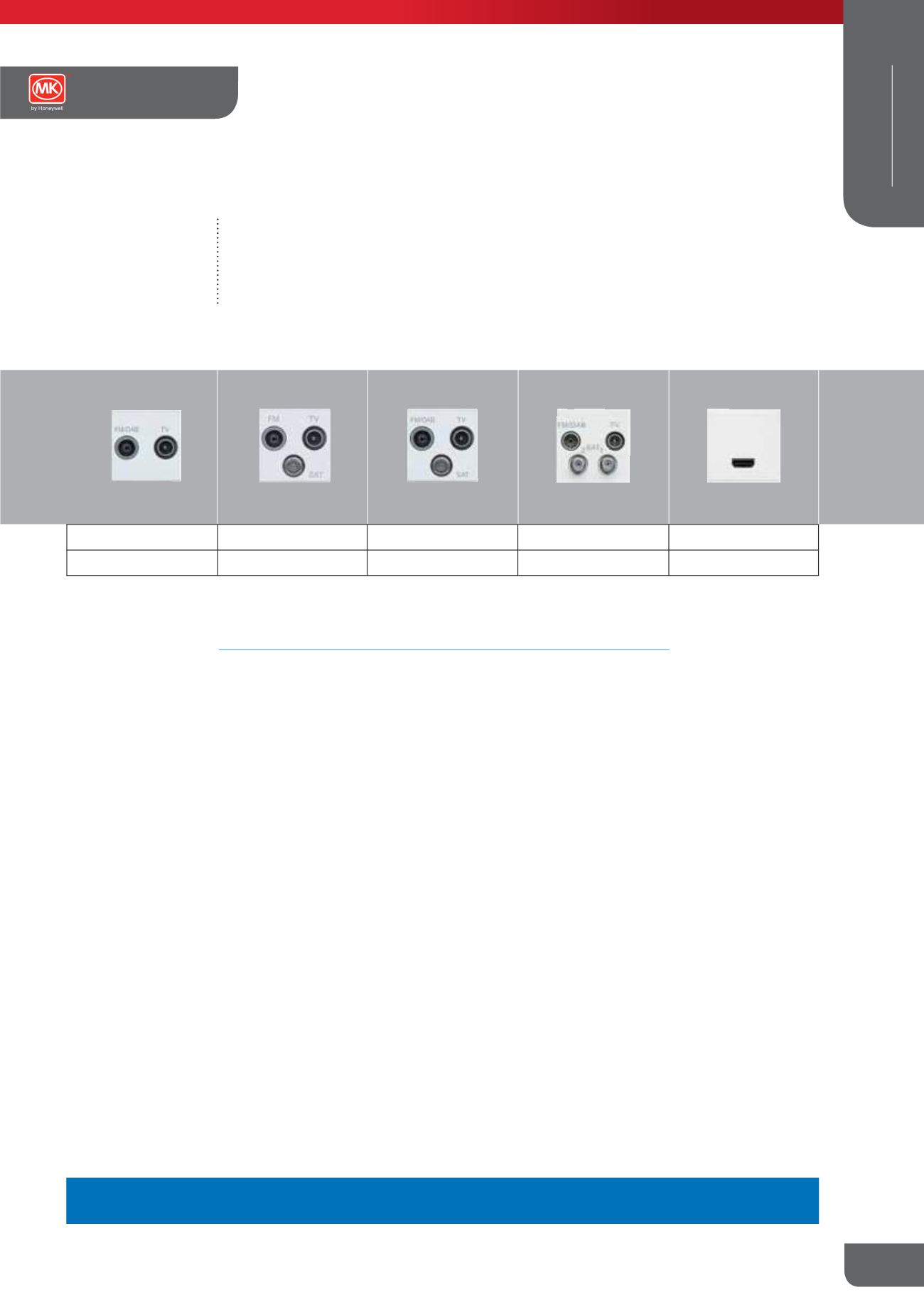

TWIN OUTLET
TV-FM/DAB
DIPLEXER
2 MODULE
50 X 50MM
TV/FM Diplexer units for connection
to a single co-axial aerial lead with
combined TV and FM signals.
PERFORMANCE
Single
TV:
DC -
950MHz
Sat:
DC -
1.75GHz
Diplexer
TV:
5-65MHz
470-
862MHz
FM:
87.5-108
MHz
TV/FM/DAB FOR DIGITAL RADIO
PERFORMANCE
Diplexer
TV:
5-65MHz
470-
862MHz
FM/DAB: 87.5-
230MHz
TRIPLE OUTLET
TV/FM/SATELLITE
TRIPLEXER
2 MODULE
50 X 50MM
(IRELAND ONLY)
TRIPLE OUTLET
TV-FM/DAB-SAT
TRIPLEXER
2 MODULE
50 X 50MM
QUAD OUTLET
TV-FM/DAB-2XSAT
2 MODULE
50 X 50MM
FEMALE HDMI OUTLET
2 MODULE
50 X 50MM
Euro Multimedia Modules
These products are fully compatible with Labgear TV distribution systems and are approved for use
in “Sky Homes” and “Homes On” specifications.
K5807 Female HDMI Outlet is HDMI
1.1, 1.2. 1.3 and 1.4b compatible,
HDCP compliant.
DATA RATE
Up to 2.25 Gbps
SCAN
Up to 1080p/1920x1200
INPUT CONNECTOR
1 x HDMI Female (Type A)
OUTPUT CONNECTOR
1 x HDMI Female (Type A)
Supports high resolution input:
PC: VGA, SVGA,
SXVGA (1280x1024) and UXGA
(1600x1200, 1920x1200)
HDTV: 480p, 720p, 1080i and 1080p
HDMI input cable should be no larger
than 20m
TV/FM diplexer units for connection to a single co-axial aerial lead with
combined TV and FM signals.
TV/FM/SAT triplexer units for connection to a single co-axial aerial lead with
combined TV, FM and Satellite signals
PERFORMANCE
SINGLE OUTLETS
TV/FM IEC MALE OR FEMALE
DC-950MHz
SAT F-TYPE
DC-1.75GHz
TV/FM/SAT PRODUCTS
OUTLET
DIPLEXER
OUTLET
TRIPLEXER
TV
5-65MHz
TV
5-65MHZ
470-862MHz
470-862MHz
FM/DAB
87.5-108MHz
FM
87.5-108MHz
SAT
N/A
SAT1
950-2300MHz
TV/FM/DAB/SAT PRODUCTS FOR DIGITAL RADIO
OUTLET
DIPLEXER
OUTLET
TRIPLEXER
TV
5-65MHz
TV
5-65MHz
470-862MHz
470-862MHz
FM/DAB
87.5-230MHz
FM
87.5-230MHz
SAT OR SAT1
N/A
SAT1
950-2300MHz
SAT2
SAT2
5-2300MHz
Mains operated products and extra low voltage modules must not be installed within the same frontplate.
Refer to BS 7671:2008 for details.
