MK Electric Catalogue No. 49

124 / 759

124
WIRING DEVICES
DECORATIVE
Aspect
Mains operated products and extra low voltage modules must not be installed within the same frontplate.
Refer to BS 7671:2008 for details.

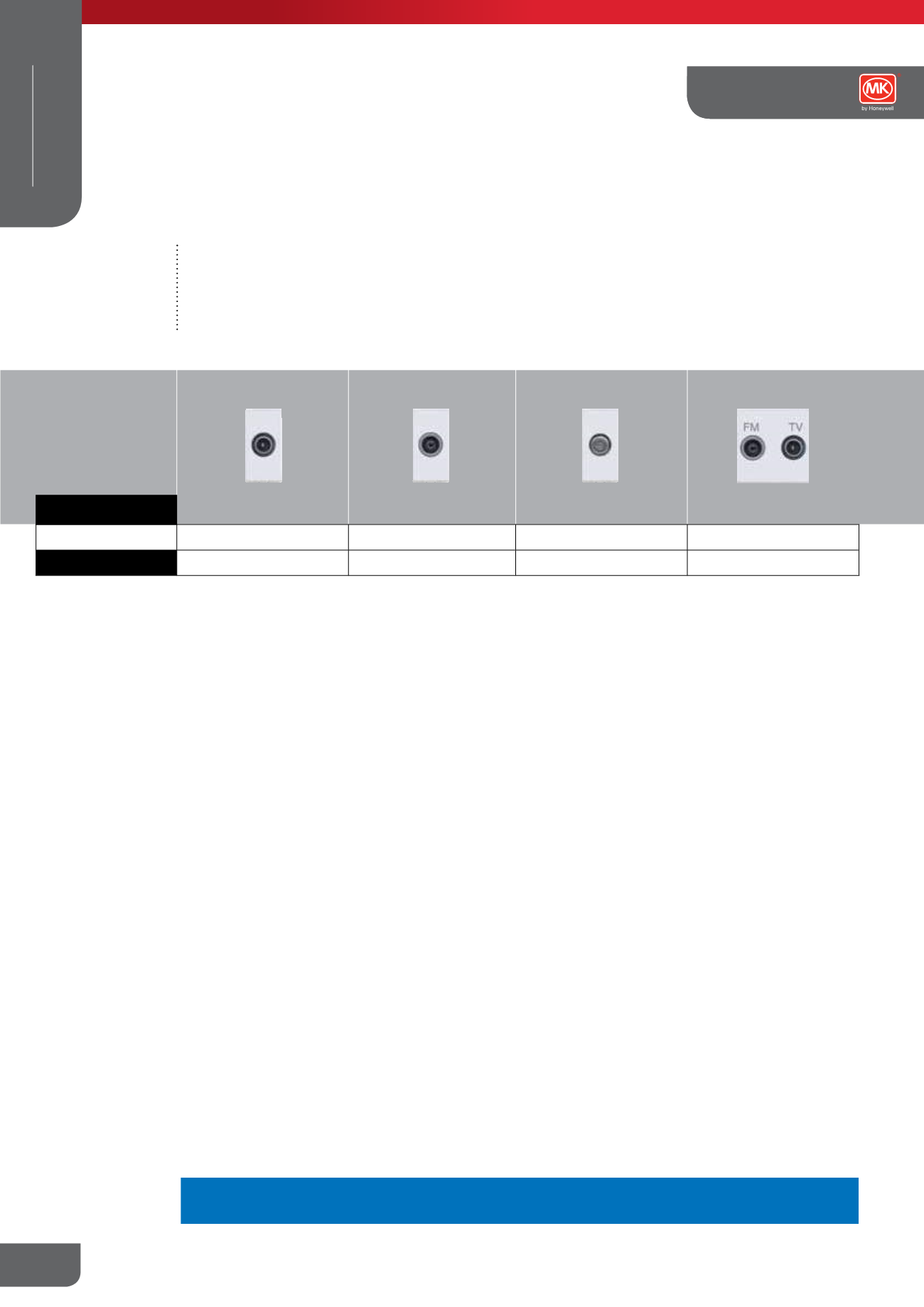

SINGLE OUTLET
(IEC MALE)
1 MODULE
25 X 50MM
SINGLE OUTLET
(IEC FEMALE)
1 MODULE
25 X 50MM
SINGLE F-TYPE
SATELLITE
SOCKET
1 MODULE
25 X 50MM
TWIN OUTLET
TV/FM DIPLEXER
2 MODULE
50 X 50MM
(IRELAND ONLY)
These products are fully compatible with Labgear TV distribution systems and are approved for use in “Sky Homes”
and “Homes On” specifications.
Fully screened non isolated TV outlets containing a combination of single, TV/FM Diplexer, TV/FM/SAT Triplexer and BT secondary
telephone outlets for use within digital TV systems and interactive TV services.
Single outlets for connection to a single TV, FM or Satellite co-axial aerial lead.
MOUNTING BOXES
Min box depth 47mm
DIMENSIONS
ONE MODULE 25 x 50mm
TWO MODULE 50 x 50mm
BS 3041:1997, IEC 169-2:1965, BS EN 50083 & BS 5733:2010 where applicable.
Euro Multimedia Modules
LEAD TIMES
Please contact our Customer
Services Department on
01268 563 404
FINISHES
TV/FM Diplexer units for connection to a
single co-axial aerial lead with combined TV
and FM signals.
PERFORMANCE
Single TV: DC - 950MHz
Sat: DC - 1.75GHz
Diplexer TV: 5-65MHz
470-862MHz
FM: 87.5-108 MHz
TV/FM/DAB FOR DIGITAL RADIO
PERFORMANCE
Diplexer TV: 5-65MHz
470-862MHz
FM/DAB: 87.5-230MHz
WHITE K5850WHI 5 K5851WHI 5 K5855WHI 5 K5852WHI 5
BLACK K5850BLK 5 K5851BLK 5 K5855BLK 5 K5852BLK 5
