K24780BSS*

1

K24781BSS*

1

K24381BSS*

1

K24709BSS*

1

K24780LBS*

1

K24781LBS*

1

K24381LBS*

1

K24709LBS*

1

K24780BRC*

1

K24781BRC*

1

K24381BRC*

1

K24709BRC*

1

K24780POC*

1

K24781POC*

1

K24381POC*

1

K24709POC*

1

K24780SAG*

1

K24781SAG*

1

K24381SAG*

1

K24709SAG*

1

K24780WHIW

1

K24781WHIW

1

K24381WHIW

1

K24709WHIW

1

K24780LIVW

1

K24781LIVW

1

K24381LIVW

1

K24709LIVW

1

K24780LBKB

1

K24781LBKB

1

K24381LBKB

1

K24709LBKB

1

K24780PBR*

1

K24781PBR*

1

K24381PBR*

1

K24709PBR*

1

K24780TIRB

1

K24781TIRB

1

K24381TIRB

1

K24709TIRB

1

K24780DBZB

1

K24781DBZB

1

K24381DBZB

1

K24709DBZB

1

K24780ABSB

1

K24781ABSB

1

K24381ABSB

1

K24709ABSB

1

K24780TCOB

1

K24781TCOB

1

K24381TCOB

1

K24709TCOB

1

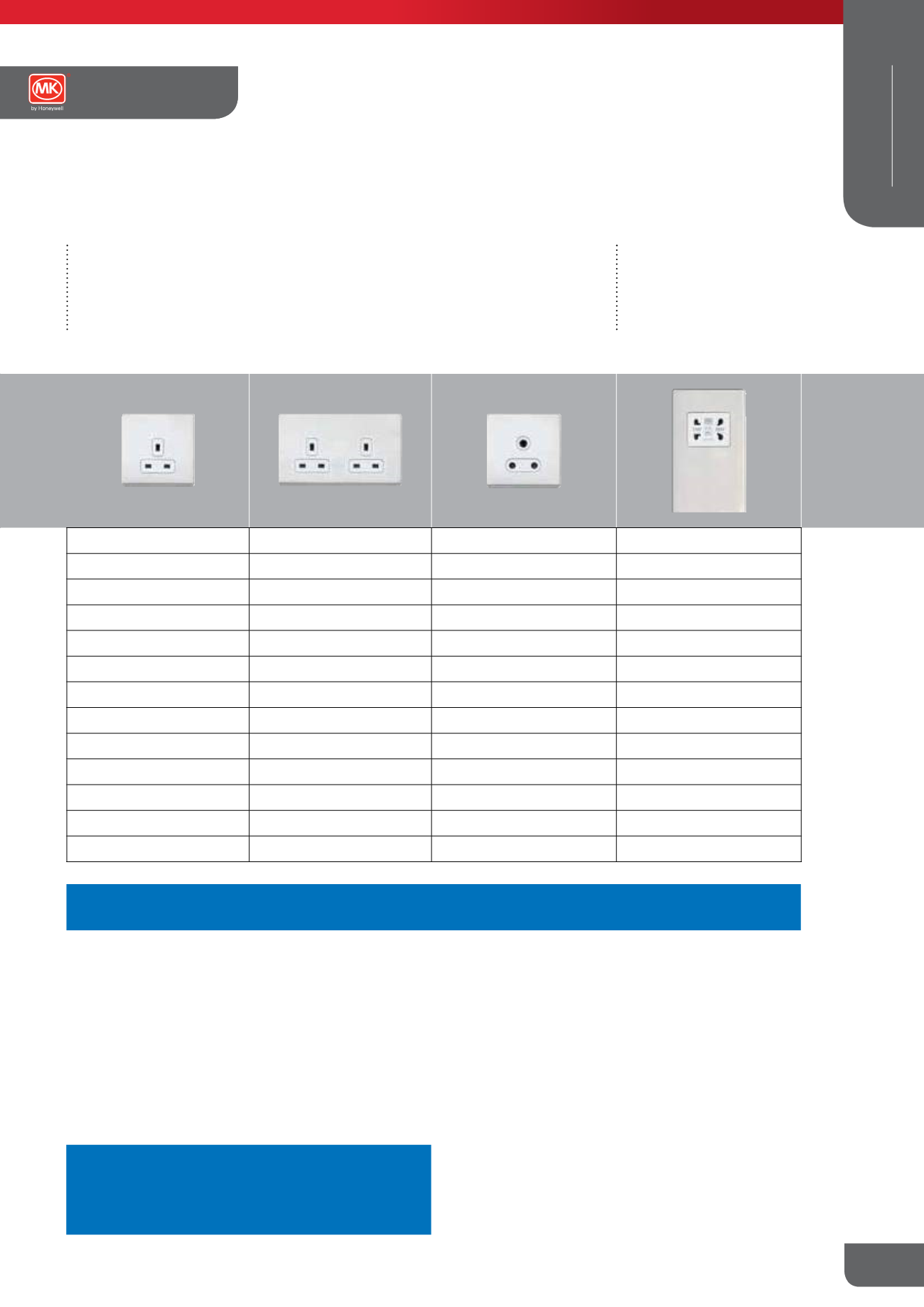

1 GANG

DUAL EARTH

13 AMP

Socket Outlets

2 GANG

DUAL EARTH

13 AMP

1 GANG

ROUND PIN

5 AMP

MOUNTING BOXES

FLUSH 35MM

866ZIC

FLUSH 46MM

877ZIC (for extra wiring space)

DIMENSIONS

86 x 86mm

FIXING CENTRES

60.3mm

BS 1363-2:1995

MOUNTING BOXES

FLUSH 35MM

886ZIC

FLUSH 47MM

878ZIC (for extra wiring space)

DIMENSIONS

86 x 146mm

FIXING CENTRES

120.6mm

BS 1363-2:1995

MOUNTING BOXES

FLUSH 35MM

866ZIC

FLUSH 46MM

877ZIC (for extra wiring space)

DIMENSIONS

86 x 86mm

FIXING CENTRES

60.3mm

BS 546:1950

DUAL VOLTAGE

OUTPUT 115/230V

INPUT 220/240V

50/60HZ

Shaver/Toothbrush

Supply Outlet

MOUNTING BOXES

FLUSH

878ZIC

This design incorporates a double wound

isolating transformer rated 20VA at 230 or 115

volts and meets BS EN 61558-2-5: 1998 making

it safe for use in bathrooms.

Insertion of a shaver/toothbrush plug

automatically switches on by energising the

primary side of the isolating transformer

– removal automatically switches off. The

transformer is protected against overload by

an automatic solid state overload device with

automatic resetting.

DIMENSIONS

146 x 86mm

FIXING CENTRES

120.6mm

BS EN 61558-2-5:1998

* Available with the option of either White or Black inserts. Add Suffix ‘W’ or ‘B’ to part number when ordering, E.g. KxxxxBSSW.

Where there is no asterix, the final suffix W = White Insert, B = Black Insert, E.g. KxxxxWHIW = Porcelain White finish with White inserts

Dual Earth: Fitted with two earth terminals to provide a double earth

facility for use when installations require a high integrity protective

connection as specified within BS 7671: 2008.

MK Electric Catalogue

103

WIRING DEVICES

DECORATIVE

Technical Hotline

+44 (0)1268 563720

Aspect
