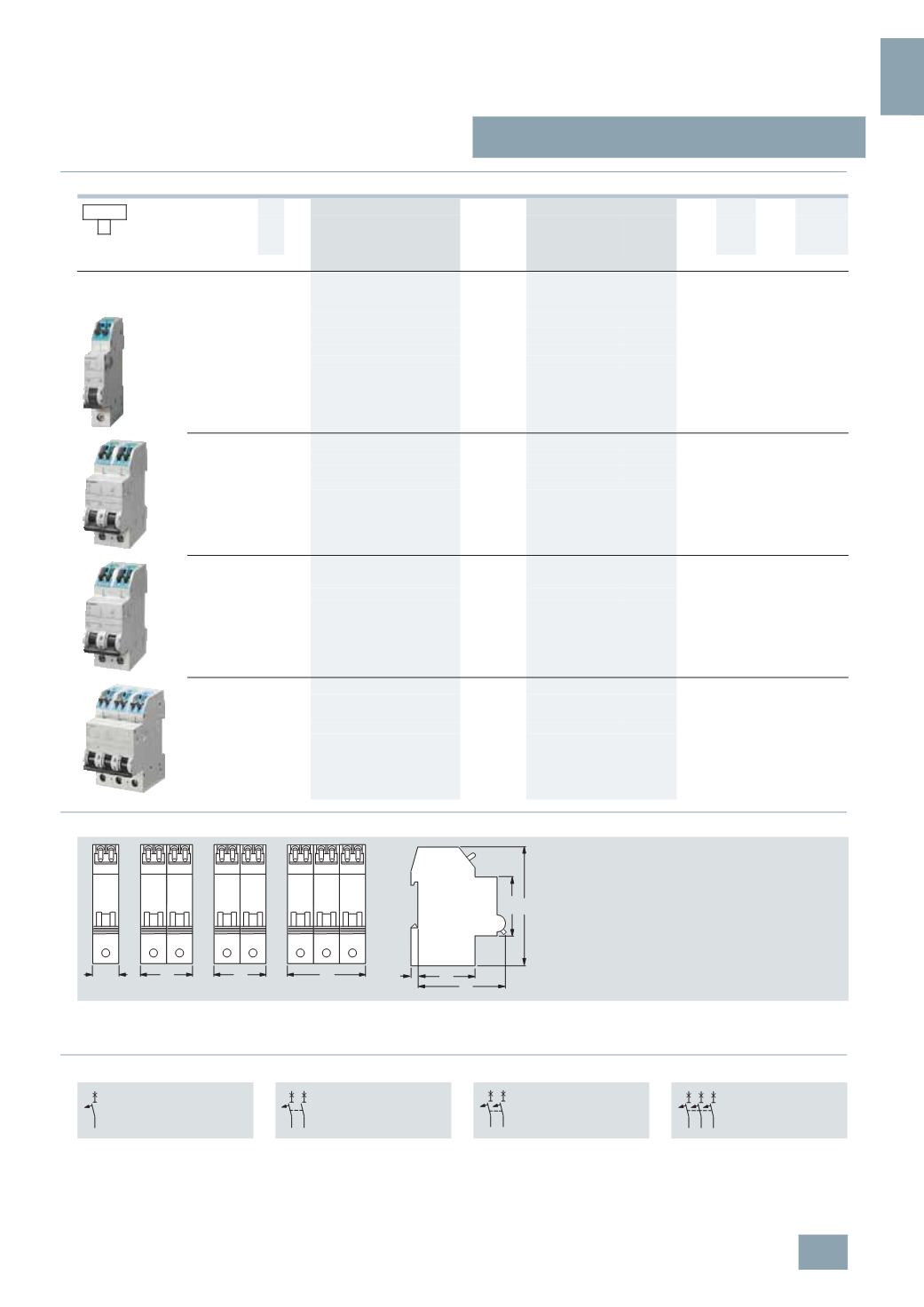

BETA Protecting
Miniature Circuit Breakers
5 SJ6 ...-.KS miniature circuit breakers
with plug-in terminals
1/23 Siemens ET B1 · 10/2008
1
* You can order this quantity or a multiple thereof.
■ Selection and ordering data
■ Dimensional drawings
■ Schematics
Characteristic B Characteristic C
In MW DT Order No. Price
per PU
PG DT Order No. Price
per PU
PG PU PS*/
P. unit
Weight
per PU
approx.
A Unit(s) Unit(s) kg
Miniature circuit
breakers with
plug-in terminals
1P
10 1 B 5SJ6 110-6KS 002 B 5SJ6 110-7KS 003 1 1 0.111
13 B 5SJ6 113-6KS 002 B 5SJ6 113-7KS 003 1 1/12 0.111
16 A 5SJ6 116-6KS 002 B 5SJ6 116-7KS 003 1 1 0.111
20 B 5SJ6 120-6KS 002 B 5SJ6 120-7KS 003 1 1/12 0.111
1P+N
10 2 B 5SJ6 510-6KS 002 B 5SJ6 510-7KS 003 1 1/6 0.185
13 B 5SJ6 513-6KS 002 B 5SJ6 513-7KS 003 1 1/6 0.185
16 B 5SJ6 516-6KS 002 B 5SJ6 516-7KS 003 1 1/6 0.185
20 B 5SJ6 520-6KS 002 B 5SJ6 520-7KS 003 1 1/6 0.185
2P
10 2 B 5SJ6 210-6KS 002 B 5SJ6 210-7KS 003 1 1/6 0.225
13 B 5SJ6 213-6KS 002 B 5SJ6 213-7KS 003 1 1/6 0.225
16 B 5SJ6 216-6KS 002 B 5SJ6 216-7KS 003 1 1/6 0.225
20 B 5SJ6 220-6KS 002 B 5SJ6 220-7KS 003 1 1/6 0.225
3P
10 3 B 5SJ6 310-6KS 002 B 5SJ6 310-7KS 003 1 1/4 0.345
13 B 5SJ6 313-6KS 002 B 5SJ6 313-7KS 003 1 1/4 0.345
16 B 5SJ6 316-6KS 002 B 5SJ6 316-7KS 003 1 1/4 0.345
20 B 5SJ6 320-6KS 002 B 5SJ6 320-7KS 003 1 1/4 0.345
1P 1P+N 2P 3P
6 000
3
5
6
3
4
1
2
3
4
1
2
N
N
1
2
1
2
44
70
6
4590
I2_13759
54 36 36 18
1P 1P+N 2P 3P
