Mini cam switches
Locks
2010 CA08103002Z-EN
4/77
Locks
For mounting form EZ
With two keys
When ordering with basic unit
Part no.
Article no.
Price
See price
list
Std. pack Notes
Key operated lock mechanism
KABA lock 90° switch angle
Protection type IP65
With two keys
When ordering with basic unit
0° +EZ/S-A
045458
1 off Key operation lock mechanism, incl. 2 keys.
The key can only be removed in certain positions; see diagram
below. The KABA lock for 90° can be used for other switching
angles as well if the key withdrawability characteristics match
the type of switch.
Example: +EZ/S-B can be used with a step switch with a
switching angle of 30° if the key is only to be withdrawable in
the 0 position at 270°.

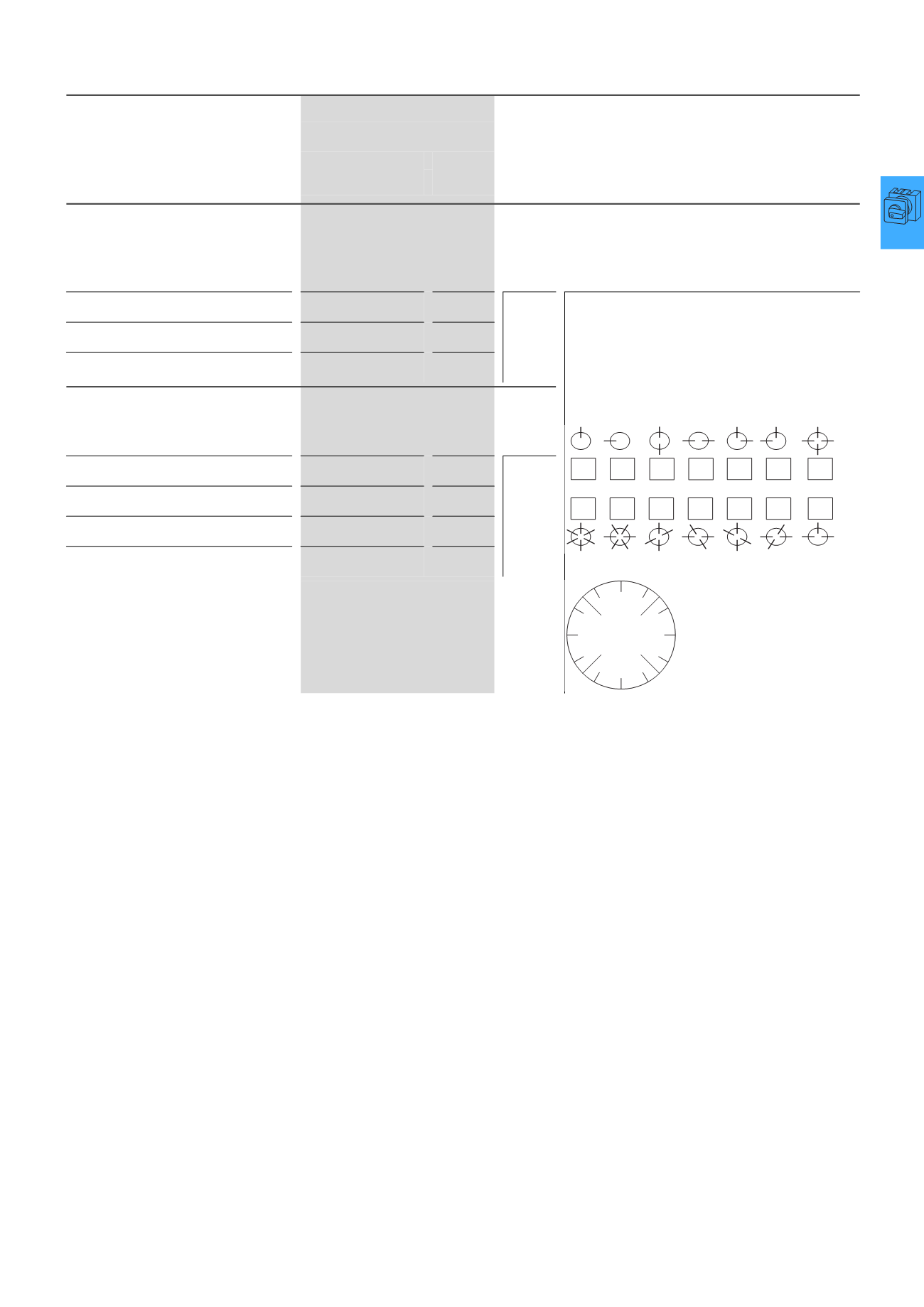

Options for key withdrawal
Position marking as in example
270° +EZ/S-B
045459
270 + 0° +EZ/S-F
045463
RONIS lock 60° switching angle
Protection type IP55
With two keys
When ordering with basic unit
270 + 90° +EZ/S-D
045461
1 off
300 + 0 + 60 + 120 + 180 + 240° +EZ/S-H
045465
270 + 330 + 30 + 90 + 150 + 210° +EZ/S-J
045466
270 + 330 + 90 + 150° +EZ/S-N
045468
A B F E
R
G C D
H J M N P Q
330
0
30
300
270
240 225
210 180 150
135 120
90
60
315 45
