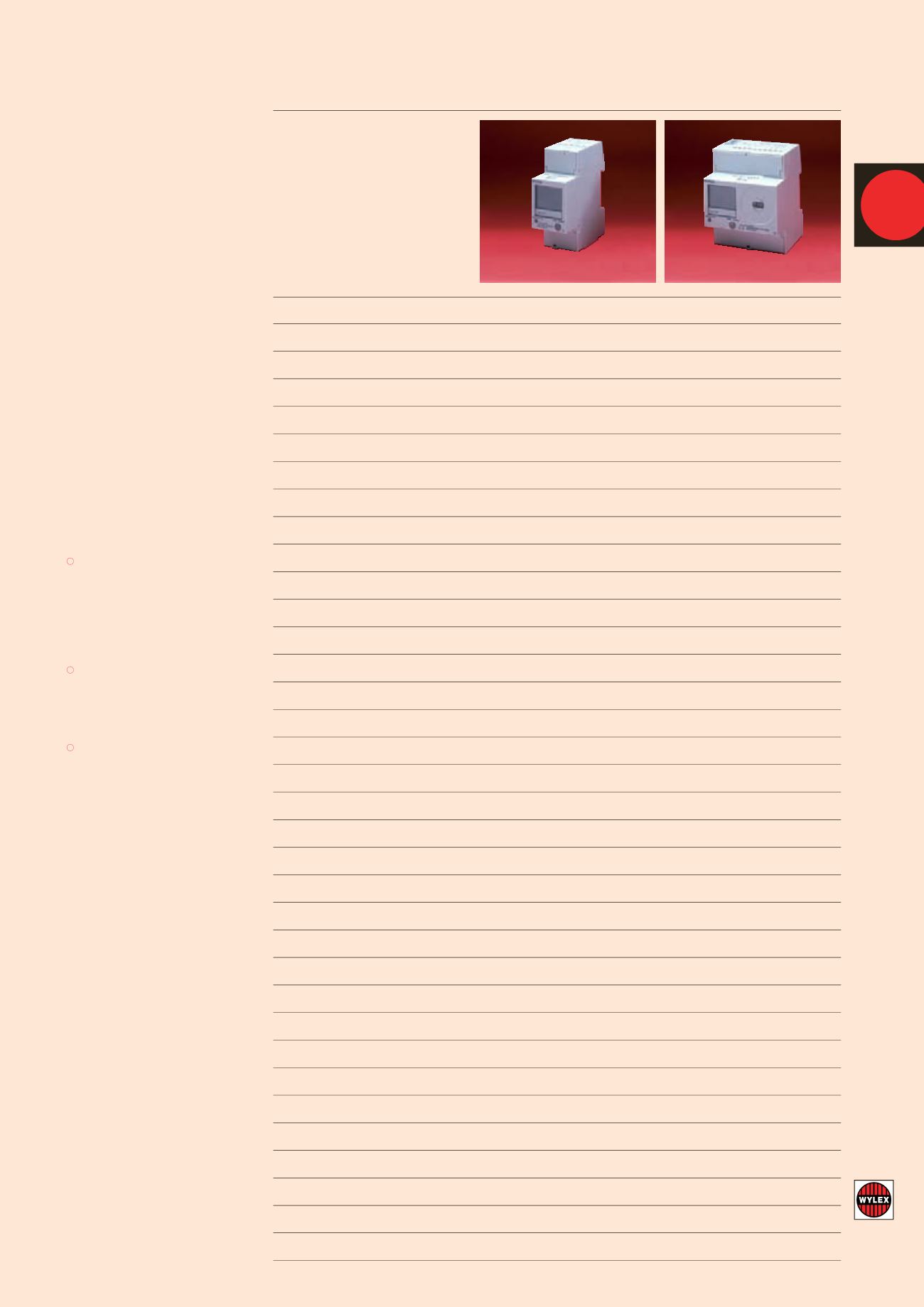

METERING -TECHNICAL DATA
General Characteristics
HousingWidth
2 modules DIN
4 modules DIN
Mounting
35mm DIN rail
35mm DIN rail
Depth
70mm
70mm
Reference standard
EN 50470-1-3
(B)
, EN 62053-23-31
EN 50470-1-3
(B)
, EN 62053-23-31
Operating Features
Connectivity
2
2-3-4
Storage of energy values and configuration
yes
yes
Display tariffs identifier
T1 and T2
T1 and T2
Supply
Rated control supply voltage Un
230VAC
230VAC
Operating range voltage
184 … 276V
184 … 276V
Rated frequency fn
50 Hz
50 Hz
Rated power dissipation (max.) Pv
≤
8 (0.6)VA (W)
≤
8 (0.6)VA (W)
Display (readouts)
Connection errors and phase out
-
PHASE Err
Display type LCD - Digits
7 (1 decimal) - 6mm x 3mm
8 (1 decimal) - 6mm x 3mm
Active energy: 1 display, 7-digit
000000.0 … 999999.9 kWh
0000000.0 … 999999.9 kWh
+ display import or export (arrow)
999999.9 … 000000.0 kWh
9999999.9 … 000000.0 kWh
Reactive energy: 1 display, 7-digit
000000.0 … 999999.9 kWh
0000000.0 … 999999.9 kWh
+ display import or export (arrow)
999999.9 … 000000.0 kWh
9999999.9 … 000000.0 kWh
Instantaneous active power: 1 display, 3-digit
000 … 999W, kW or MW
000 … 999W, kW or MW
Instantaneous reactive power: 1 display, 3-digit
000 … 999 var, kvar or Mvar
000 … 999 var, kvar or Mvar
Instantaneous tariff measurement
1 display, 1 digit T1 or T2
1 display, 1 digit T1 or T2
Display period refresh (seconds)
1
2
Measuring accuracy
Active energy and power
±1%
(B)
±1%
(B)
Reactive energy and power
±2 %
±2 %
Pulse output SO
Pulse output
yes
yes
Pulse quantity
1000 imp/kWh
500 imp/kWh
Pulse duration
30 ±2 ms
30 ±2 ms
Required voltage
5 … 230 ±5% (5 …300)VAC (DC)
5 … 230 ±5% (5 …300)VAC (DC)
Permissible current
90 mA
90 mA
Permissible current
1
m
A
1
m
A
80 A SP
80 ATP
Single Phase and Three Phase
Measuring Devices
Direct Connected kW Meters -
No external current transformers
required.
Standard reading or MID calibrated
options.
All meters have pulsed output for
Building Management Systems. (BMS)
MID approval
Under the Electricity Act 1989 all
electricity meters used for billing
purposes must be approved.
The approval for these meters is
obtained by conforming to the
European Measuring Instruments
Directive (MID) 2004/22/EC
(replacing OFGEM approval).This
directive covers a number of different
Instruments that are used to measure
products or services for reselling.
Therefore not only does it apply to
Electrical Meters but you may see
MID approval on a range of items
such as the charge meter in a taxi,
beer and wine glasses (the volume
measurement line) in a Public House
or on the petrol pumps when you are
filling up your vehicle.
Who should be using MID
certified meters?
By Law, anyone who is taking a meter
reading that is then used for billing
purposes and for which they
subsequently receive a payment from
the user for the electricity consumed.
Some typical examples:
l
A Retail shopping centre owner
wants to measure the individual
consumption of all the store
owners in his shopping mall and
send them separate invoices for
the electricity that each has used
to run their business.
l
A Landlord who wants to measure
the electricity used by tenants
renting apartments in his building
and then send them a bill for the
electricity they have used.
l
A caravan/mobile home Leisure
Park wants to measure the
consumption of its customers and
charge them an exact amount for
the electricity used at the end of
their rental period.
All of these examples must have the
electricity consumption reading taken
from a certified MID approved meter.
The MID certification validates that
the meter is manufactured using
quality components, assures the
meter is accurate for electricity billing
purposes and that it maintains this
accuracy over time for consistent
readings.
Standard Meters - Non
MID approved
If a meter is being used purely for a
“check meter reading” and not being
used to resell or charge for electricity
consumed, then a standard meter that
is reasonably accurate may be used to
measure energy used at that point in
time. For example, a check meter
reading is required to meet L2
Building Regulations and Chartered
Institution of Building Services
Engineers TM39 guide to Building
Energy Metering. The reading taken is
used as a ‘check point’ to help reduce
energy consumption.
