Cable entries system with connectors

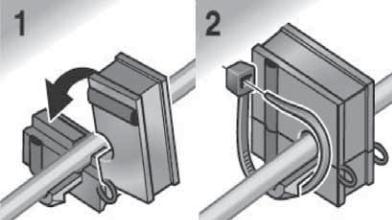

● System in two parts for inserting cables and hoses in the enclosures.
● Several ribbed gaskets adapted to the diameter of the cable.
● Models:
– 24/0: plain.
– 24/4: for two small gaskets with cable diameters between 3 and 14 mm, and two
large gaskets with cable diameters between 16 and 31 mm.
– 24/10: for 10 small gaskets with cable diameters between 3 and 14 mm.
● Water/dustproof: IP54 for plate with entries, IP65 for plain plate.
● Identical recessing as for 24-point connectors.
● Material: PA.
Supply: 1 plate and fixing elements.
Cable-gland plates for connectors
Types
No. of entries
Reference
Plate 24/0
0
NSYDCE240
Plate 24/4
4
NSYDCE244
Plate 24/10
10
NSYDCE2410
Gaskets for cable entries system
● Ribbed gaskets adapted to the diameter of the cable.
● They are installed on the cable-gland plates for connectors.
● Models:
– Small gaskets with diameters between 3 and 14 mm.
– Large gaskets with diameters between 16 and 31 mm.
● Material: thermoplastic rubber.
Supply: 10 units.
Reference by unit. Order by multiples of 10 (10, 20, 30...).
cable (mm)
Reference
Small gasket
Plain
NSYCEJD
3-4
NSYCEJD3
5-6
NSYCEJD5
7-8
NSYCEJD7
9-10
NSYCEJD9
11-12
NSYCEJD11
13-14
NSYCEJD13
Large gasket
16-17
NSYCEJD16
18-19
NSYCEJD18
20-21
NSYCEJD20
22-23
NSYCEJD22
24-25
NSYCEJD24
26-27
NSYCEJD26
28-29
NSYCEJD28
30-31
NSYCEJD30
Cable entries
32
5.5
36
130
112
