7/77
A- 200
B-400
Example of the combination of cut-out, screwed-on cover
plates and chassis-coupling set with busbar zone
Nominal dimensions (mm)
No. of 18-mm
modules
Reference
Height (A)
Width (B)
1 chassis-
coupling set with
zone for busbars
5 screwed-on cut-
out 300-mm cover
plates
2 adjustment
cover plates
1800
1000
240
1
NSYCSHB1810
5
NSYMUC306
1
NSYADC16
1800
1200
360
1
NSYCSHB1812
5
NSYMUC308
1
NSYADC18

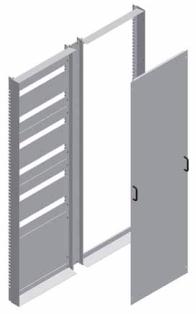

Chassis-coupling set with zone for busbars
● Set for mounting on enclosures with widths of 1000 and 1200 mm.
●
Spacial SF:
They are screwed to the front frame enclosure.
●
Spacial SM:
They are screwed to the front frame of the enclosure by means of
the vertical and horizontal adaptation profiles, see page
7/34
.
● Assembly made up of a modular chassis with an intermediate central upright and
a blanking cover plate for busbars (width 300 mm).
● Material: steel.
● Finish: painted with epoxy-polyester resin, textured RAL-7035 grey.
Supply:
– One single-chassis coupling set.
– One intermediate central upright.
– One busbar blanking cover plate.
– Fixing elements.
Nominal dimensions (mm)
Set made up of
columns with a
width (mm)
Maximum
no. of 18-mm
modules
Reference
Height
Width
1400
1000
600 + 400
192
NSYCSHB1410
1200
800 + 400
288
NSYCSHB1412
1600
1000
600 + 400
216
NSYCSHB1610
1200
800 + 400
324
NSYCSHB1612
1800
1000
600 + 400
240
NSYCSHB1810
1200
800 + 400
360
NSYCSHB1812
2000
1000
600 + 400
288
NSYCSHB2010
1200
800 + 400
432
NSYCSHB2012
For ranges
SF, SM
Modular distribution
