enclosure
Composition accessories
IP 54 sealing kit
● Placed directly on the door and on the rear of the enclosure.
● Provides a degree of protection of IP 54.
● Seal made from black synthetic rubber.
For floor-standing enclosure
References
Width (mm)
465
NSYJED8500
590
NSYJED860
785
NSYJED881
1115
NSYJED8122
Locks and inserts
Locks
● Standard lock with retractable plastic handle and 1242 E semi-cylindrical safety
lock.
● Other optional shape inserts or barrels and keys.
Name
References
5-mm double bar
NSYTDB5ME
6-mm male square
NSYTC6ME
7-mm male square
NSYTC7ME
8-mm male square
NSYTC8ME
6.5-mm male triangle
NSYTT6ME
8-mm male triangle
NSYTT8ME
Barrel and key 405
NSYTCL405ME
Reinforced semi-cylindrical barrel and key
NSYTLRME
Padlocking accessory
● Padlocking system, for 9 mm padlock, preventing access to the handle.
Name
Reference
Padlocking accessory
NSYBCME
Inserts for optional change
Floor-standing supports
● Set of 2 metal supports for fixing the enclosure directly to the floor.

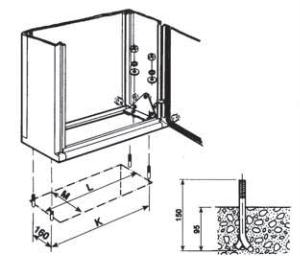

Table of fixing and opening dimensions
K
L
M
For floor-standing enclosures
360
320
224
NSYPLD8500
495
455
224
NSYPLD860
690
650
224
NSYPLD881
1020
980
224
NSYPLD8122
and
NSYPLD8122C
Name
Reference
Floor-standing support
NSYSPLD
