60,5
NSYTC6CRN
NSYTC7CRN
NSYTC8CRN
NSYTT6CRN
NSYTDBCRN
NSYTDB5PLA
NSYTHL1242EPLM
NSYTHL405PLM
NSYTHL421PLM
NSYTHL455PLM
NSYTHL2331APLM
NSYTHL2433APLM
NSYTHL3113APLM
NSYTBC (1)
NSYTK1
NSYTT8CRN
NSYTK2
NSYTHPLM
Internal dimensions (mm)
Number of
modules
Modular
mounting plates
Kits for
equipment
Height
Width
Depth
180
130
96
4
NSYAMPM1612SB NSYAPMC1813SB
180
165
96
-
NSYAMPM1816SB
-
230
210
126
8
NSYAMPM2321SB NSYAPMC2321SB
Name
Reference
Set of 2 fixing lugs
NSYAEFS24
Glass-breaking set
NSYAEDXS24
Mounting accessories
● Treated-steel mounting plates, delivered with fixings.
● Kit for modular equipment, delivered with fixings.
Composition accessories
● Set of 2 fixing lugs made from treated steel, with fixings (without sealing washer,
degraded IP).
● Glass-breaking set (hammer with support).

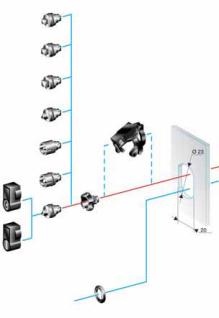

Door locks
(1) Incompatible with locking handle.
(2) Locks not referenced, to special order only. Consult our local sales office.
Note: the locks are not adaptable on lock screw models.
Kit comprises 2 rings and 6 cams
with assembly instruction sheet
for another type of cylindrical
lock (2).
