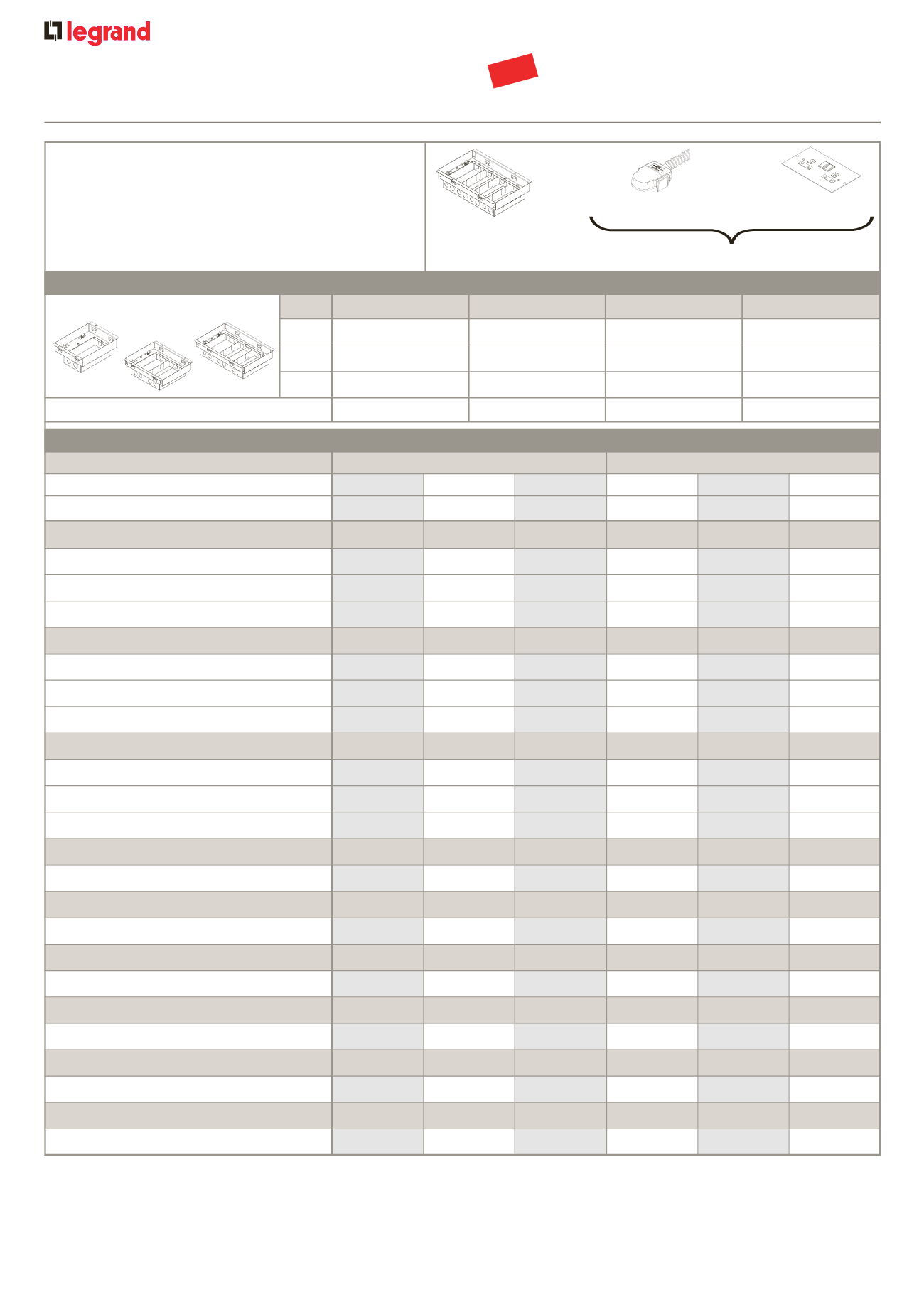

Legrand floor and perimeter systems technical guide - page 38

38
1 x 13 A standard socket outlet
13 A twin switched socket plate PW11 PW12 PW13 PW14 PW15 PW16
13 A twin unswitched socket plate PW17 PW18 PW19 PW110 PW111 PW112
13 A triple unswitched socket plate1 PW119 PW120 PW121 PW122 PW123 PW124
2 x 13 A standard socket outlets
13 A twin switched socket plate1 PW21 PW22 PW23 PW24 PW25 PW26
13 A twin unswitched socket plate1 PW27 PW28 PW29 PW210 PW211 PW212
13 A triple unswitched socket plate1 PW219 PW220 PW221 PW222 PW223 PW224
3 x 13 A standard socket outlets
13 A twin switched socket plate1 PW31 PW32 PW33 PW34 PW35 PW36
13 A twin unswitched socket plate1 PW37 PW38 PW39 PW310 PW311 PW312
13 A triple unswitched socket plate1 PW319 PW320 PW321 PW322 PW323 PW324
1 x 13 A non-standard socket outlet
13 A twin NS switched socket plate PW131 PW132 PW133 PW134 PW135 PW136
2 x 13 A non-standard socket outlets
13 A twin NS switched socket plate1 PW231 PW232 PW233 PW234 PW235 PW236
3 x 13 A non-standard socket outlets
13 A twin NS switched socket plate1 PW331 PW332 PW333 PW334 PW335 PW336
1 x RCD socket outlet
2 gang RCD socket plate1 PW149 PW150 PW151 PW152 PW153 PW154
2 x RCD socket outlets
2 gang RCD socket plate1 PW249 PW250 PW251 PW252 PW253 PW254
3 x RCD socket outlets
2 gang RCD socket plate1 PW349 PW350 PW351 PW352 PW353 PW354
Cat. Nos. 820732 820738 820734 820752 820758 820754
The table below details the elements required to correctly order a
pre-wired floor box or slab box
Lid and trim to be ordered separately p. 27
Simply suffix the service outlet box Cat. No. with the relevant
“PW...” Cat. No. from the table, eg :
4 compartment cavity floor box, 110 mm deep (Cat. No. CAV4110)
pre-wired with 1 x standard twin switched socket (Cat. No. SP3201)
to a 3 m 13 A fused standard tap-off (Cat. No. 820732) =
CAV4110PW11
3 m 5 m
13 A Fused 32 A Unfused 13 A High integerity 13 A Fused 32 A Unfused 13 A High integerity
1: Where boxes are supplied with a single tap-off unit and contain more than 2 x single socket
outlets, the loading of the service box must not exceed 32 A
2 compartment 3 compartment 4 compartment 1 compartment
75 mm – CAV275 CAV375 CAV475
85 mm CAV185 CAV285 CAV385 CAV485
110 mm – CAV2110 CAV3110 CAV4110
Choose your tap-off and socket outlet plates
Choose your service outlet box
Depth
Slab floor box SLAB1 SLAB2 SLAB3 SLAB4
Cavity floor service outlet boxes
+ +
Service outlet box
(eg. CAV4110)
NEW
CAV4110 PW11
Standard tap-off unit
pre-wired cavity floor service outlet boxes
configuration table for standard tap-off units
Standard tap-off unit
(eg. 3 m 13 A fused 820732)
Socket outlet plates
(eg. SP3201)
